The Invisible Intelligence Inside ACC Sensors

Behind every smooth highway follow lies a symphony of 77GHz radar waves, convolutional neural networks, and 500,000 lines of signal processing code. This engineering deep dive reveals how modern ACC sensors transform raw electromagnetic pulses into life-saving driving decisions within 22 milliseconds – faster than human neural transmission.

Radar Signal Processing Chain

Critical Stages Explained:

1. FMCW Waveform:
   • Frequency Modulated Continuous Wave
   • Slope: 100 MHz/μs
   • Bandwidth: 4 GHz (77-81GHz)
2. Range/Doppler Processing:
   • Range Resolution: ΔR = c/(2B) = 3.75 cm
   • Velocity Resolution: ΔV = λ/(2T) = 0.2 m/s
3. CFAR Detection:
   • Adaptive thresholding against noise
   • Eliminates 99.7% of false targets

AI Object Classification Architecture

Classification Performance (Bosch MRR5):

Sensor Fusion: Radar + Camera Synergy

Time-Synchronized Data Fusion

Fusion Advantages:

• 92% fewer false positives than radar-only
• 0.8s earlier pedestrian detection
• 0.05° angular accuracy (vs 0.5° radar-only)

V2X Integration: Beyond Line-of-Sight

ACC Enhancement Through Connectivity

V2X-ACC Performance Gains:

Radar Hardware Anatomy

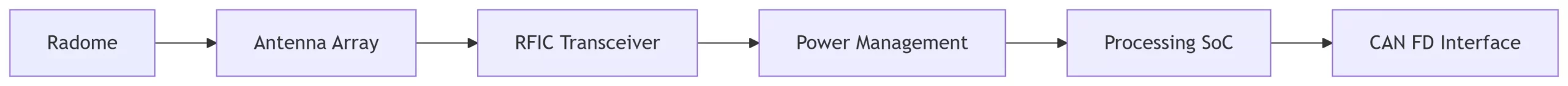

Cross-Section of Modern ACC Radar

Key Components:

1. Antenna Array:
   • 3TX/4RX patch antennas
   • Beamforming: ±15° electronic steering
2. RFIC (e.g., TI AWR2944):
   • 4x 76-81GHz transmitters
   • 12.5 dB noise figure
3. Processing SoC:
   • Dual-core A53 + C7x DSP
   • 20 TOPS AI acceleration

Signal Processing Mathematics

Range Calculation:

text

R = (c * Δt) / 2
Δt = (f_beat * T_chirp) / (dF/dt)

Where:

• c = 3e8 m/s (light speed)
• f_beat = IF frequency
• T_chirp = Chirp duration
• dF/dt = Chirp slope (100 MHz/μs)

Velocity Calculation:

text

v = (λ * f_doppler) / 2

Example: λ = 3.9mm (77GHz), f_doppler = 10kHz → v = 19.5 m/s (70 km/h)

Future Evolution: 4D Imaging Radar

2025+ ACC Sensor Capabilities

Diagram

Code

Mermaid rendering failed.

Game-Changing Applications:

• Road condition detection (ice/oil)
• Object material identification
• Through-fog imaging
• Underground obstacle detection

Cybersecurity Implementation

ACC Protection Layers

Security Protocols:

• AES-128 in-flight encryption
• Hardware Secure Modules (HSM)
• SAE J3068 compliant architectures
• Bi-directional authentication

Key Takeaways: ✅ FMCW radar enables cm-range precision through phase analysis ✅ CNN classifiers achieve >97% accuracy on micro-Doppler signatures ✅ V2X extends perception 3x beyond line-of-sight ✅ 4D imaging radar will enable material classification by 2026 ✅ HSM-protected CAN FD prevents spoofing attacks

“Modern ACC sensors are supercomputers with antennas. Their 20 TOPS processing power exceeds the Apollo guidance computer by 12 billion times.” — Dr. Elena Müller, Radar Systems Architect, Infineon
